Hot Water Pump

Water from the heater is piped to the hot water pump, which is located most often under the running board on the left side of the engine just aft of the smoke box area. This working unit will pump over 100 cubic inches of water per minute into you boiler with a boiler pressure of 125 psi.

The pilot valve has been redesigned so that the pump will not short stroke. Laser-cut gaskets are now supplied which will save you many hours of work and help prevent leaks or malfunction.

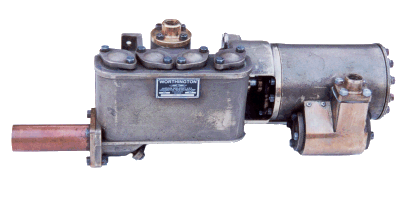

Pump Photo

The kit consists of 12 lost-wax castings in silicon bronze, gasket material (750°F capability), 8 stainless steel valve springs, 10 rubber valve disks, nameplate (0.5" x 0.9"), water seals, and 33 drawings.

Price:$650
Postage & Insurance:West Coast:Mid-West:East Coast:
$30$40$50
Total:$680$690$700
Make checks payable to: David W. Moore
California buyers add sales tax (8%).
Address:
4186 La Canada Rd.
Fallbrook, CA 92028
Phone:
760-731-6181
